ISO-RED CI POLYISO SHEATHING. Helping you stay in the black.

IsoRED CI is a rigid polyiso insulation that can add much needed R-value for residential and light commercial applications. With the ability to be affixed to wood, metal, masonry and concrete, IsoRED CI can be used for practically any job to increase energy efficiency in ceilings, interior walls and exterior walls. Additionally, water-resistant facers provide a first line of defense against moisture intrusion.

Now Available ISO RED CI XS has a facer 4 times thicker than standard ISO RED CI.

FEATURES & BENEFITS

• Best-in-class long term R-value performance.
• Provides thermal, air and vapor control layers to help keep conditioned spaces comfortable.
• 25 psi compressive strength equates to 3600 psf soil pressure.
• Resilient facer technology with closed cell foam core allows for a code compliant, weather-resistant barrier.
• Closed cell polyiso foam provides superior fastener seal-ability that building wraps do not.
• ASTM E84 Class B Certified

OPTIONS

Now Available ISO RED CI XS has a facer 4 times thicker than standard ISO RED CI. Front Facer: XS 3-ply P/K/F Back Facer: 3-ply P/K/F Seam Finish: Ox Seam Tape 2 1/2" minimum width

Physical Properties of ISO RED CI Polyiso Sheathings
ASTM Method  D1621  C209  E96  D2126 (1)  D2126     E84 (2)
   Minimum  Compressive  Strength,psi  Water  Absorption  Water Vapor  Transmission,  perms  Dimensional  Stability %  Change  Nominal  Density, pcf  Service  Temperature  Range, F  Flame  Spread  Smoke  Developed
ISO RED CI  Type 1, Class 1  25  <0.06  <0.3  <0.4  2.0  -50 to  +250  ≦75  ≦450

Downloadable Resources

​​​​ ​

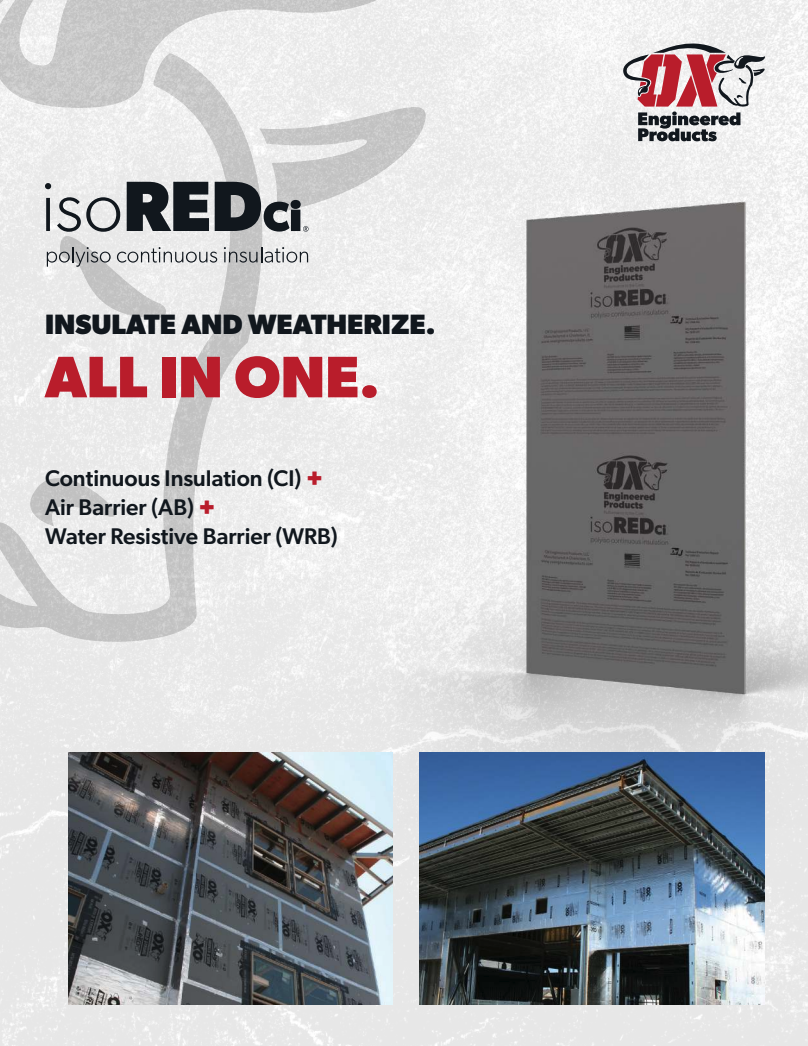

ISO RED CI Brochure
ISO RED CI Install Guide
ISO RED CI Install Guide SPANISH
ISO RED CI Technical Evaluation Report
ISO RED CI Damage Repair Guide
ISO RED CI CSI Specifications (.doc)
ISO RED CI CSI Specifications (.pdf)
ISO RED CI One and Two Hour Fire Rated Assemblies
ISO RED CI Sealed Technical Report: Portal Frames with Hold Down
ISO RED CI Window Trim Installation Details
ISO RED CI Rough Opening Penetration Best Practices
ISO RED CI Safety Data Sheet
ISO RED CI LEEDs Evaluation
