THERMO PLY STRUCTURAL SHEATHING



When you’re sheathing a building you want the job done right. But you also want it done fast. With ThermoPLY, the lightweight design allows you to work quickly while the high-strength cellulosic fiber boards provide durability, moisture resistance and a best-in-class air barrier for years to come.

FEATURES & BENEFITS

• A protective polymer layer is applied on both sides and foil facings may also be applied on one or both sides.
• Factory-extrusion coating for built-in Water Resistive Barrier with 3⁄4” (min.) overlapped or tapped joints.
• Advanced Moisture Guard option provides adhesive with 3⁄4” overlap panel joints for even tighter water and air barrier performance
• Exterior Wall Sheathing & Bracing, and Interior Shearwall Bracing.

OPTIONS

THERMO-PLY OPTIONS: ALL AVAILABLE ON ALL GRADES
* 48” or 48- 3/4” widths at no MSF up-charge
* 49” width for AMG.
* 8’, 9’ or 10’ lengths at no MSF up-charge.
* Custom lengths up to 14’ available.



The benefits of Thermo-Ply vs. OSB

Thermo-Ply Structural Sheathing by OX  OSB (Oriented Strand Board)
No added asphalts, formaldehide,phenols or CFCs  Made from wood chips, may contain formaldehyde.  Formaldehyde is a probable human carcinogen.
Stable pricing   Commodity, rapid price fluctations
Extrusion Coated WRB on both sides   Requires additional WRB layer
High moisture tolerance  Low moisture tolerance. Significant swelling when wet, which could produce mold.
Tight seal controls air infiltration for lower ACH  Average air infiltrations perfomance
Custom sizes and private labeling avaliable  Typically no custom sizes or print available
13 lbs for 4’x8’ sheet (RED)  45 lbs for 7/16’’ x 4’8’ sheet
PE-stamped in all 50 states and Canada Has no PE stamp or independent engineering testing/certification
Covered by warranty No warranty

Physical Properties of Thermo- Ply Structural Sheathing
Physical Property  Standard  Test result  Unit of Measure
R- value  ASTM C518  Green .13| Red .18| Blue.20  *F.Ft 2. h/Btu
Drainage Efficiency  ASTM E2273   97.8  %
Sound Transmission  ASTM E90  STC 21 dB
Water Absorption  ASTM D1037  Less than 15  %
Permeability  ASTM E96  < 0.6  Perms
Air Barrier  ASTM E2178  < 0.02  L/s/M2@75Pa

Downloadable Resources

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
Thermo-PLY Brochure
Thermo-Ply Installation Guide
Thermo-Ply Installation Guide Spanish
Thermo-Ply 30 Year Limited Warranty
Thermo-Ply Red Technical Evaluation Report
Thermo-Ply Blue Technical Evaluation Report
Thermo-Ply Green Technical Evaluation Report
Thermo-Ply Red Technical Evaluation Report-Canada
Thermo-Ply Blue Technical Evaluation Report-Canada

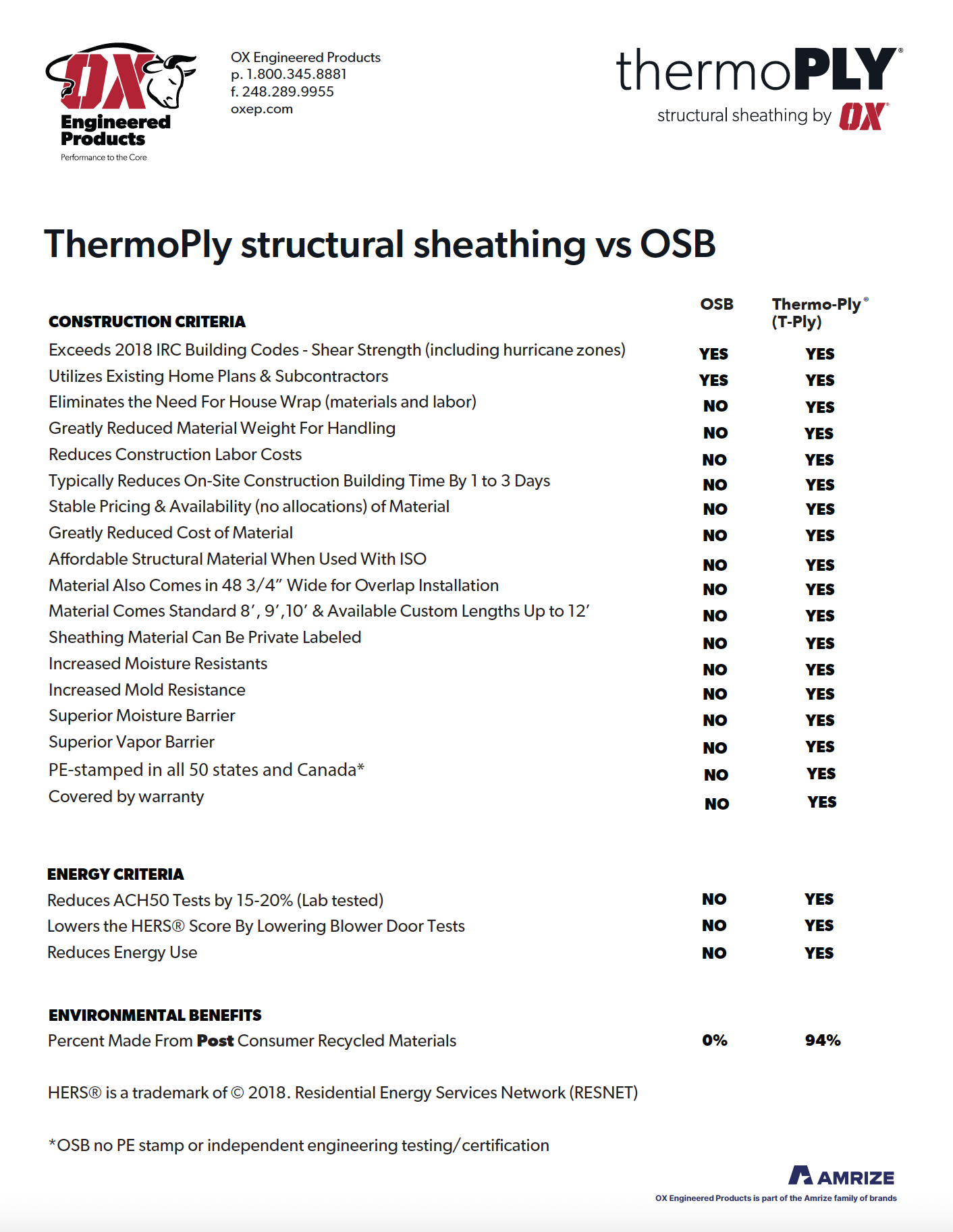

Thermo-Ply vs. OSB Comparison Chart
Thermo-Ply Evaluation Report Portal Frames with Hold Down
Thermo-Ply One and Two Hour Fire Rated Assemblies
Thermo-Ply Standard 3 Coat Stucco Detail
Thermo-Ply Safety Data Sheet
Thermo-Ply Damage Repair Guidelines
Thermo-Ply Window Trim Installation Details
Thermo-Ply Rough Opening Penetration Best Practices
Thermo-Ply Wall Thickness Detail 113
Thermo-Ply Wall Thickness Detail 114
Thermo-Ply Wall Thickness Detail 115
