OX-IS-STRUCTURAL INSULATION




OX-IS Is the all-in-one product that allows you to meet building code requirements for structural sheathing, continuous insulation, weather and air resistive barrier performance.

FEATURES & BENEFITS

Industry’s tightest air barrier for lower air infiltration: air exchange per hour performance 15-20% better than standard OSB + House Wrap
* Reduce Conductive Heat Losses
* Address Thermal Bridging Through Framing
* Reduce Condensation Potential Within Wall Cavity

OPTIONS

Three Layers of Protection
A non-reflective resilient exterior facer
Polyisocyanurate foam core
Thin, high-pressure laminated member


Physical Properties of OX-IS ( foam properties) Complies with ASTM C1289, Type 1,Class 1
ASTM Method  D1621  C203  C209  E96  D2126 (1)      E84 (2)
  Minimum Compressive Strength, PSI  Flexible Strength, PSI  Water Absorption  Water Vapor transmission, perms  Dimensional Stability % Change  Nominal Density,pcf  Service Temperature Range, F  Flame Spread  Smoke Deployed
OX-IS  25  <0.06  <0.06  <0.3  <0.4 2.0  -50 to +190 ≦75  ≦ 450

Thermal R-Values (1) | “R’’ means resistance to heat flow. The higher the R- value, the greater the insulating value.
Thickness (nom.), in  Thermal R- Value
0.50  3.0
0.50 HS (High Shear) 3.0
1.00 6.0
1.70 10
*Available only in Canada, New Zealand & Australia

Downloadable Resources

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​

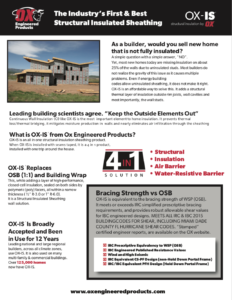

OX-IS Brochure
OX-IS Installation Guide
Spanish OXIS Installation Guide
OX-IS 30 Year Limited Warranty
Why Builders Choose OX-IS

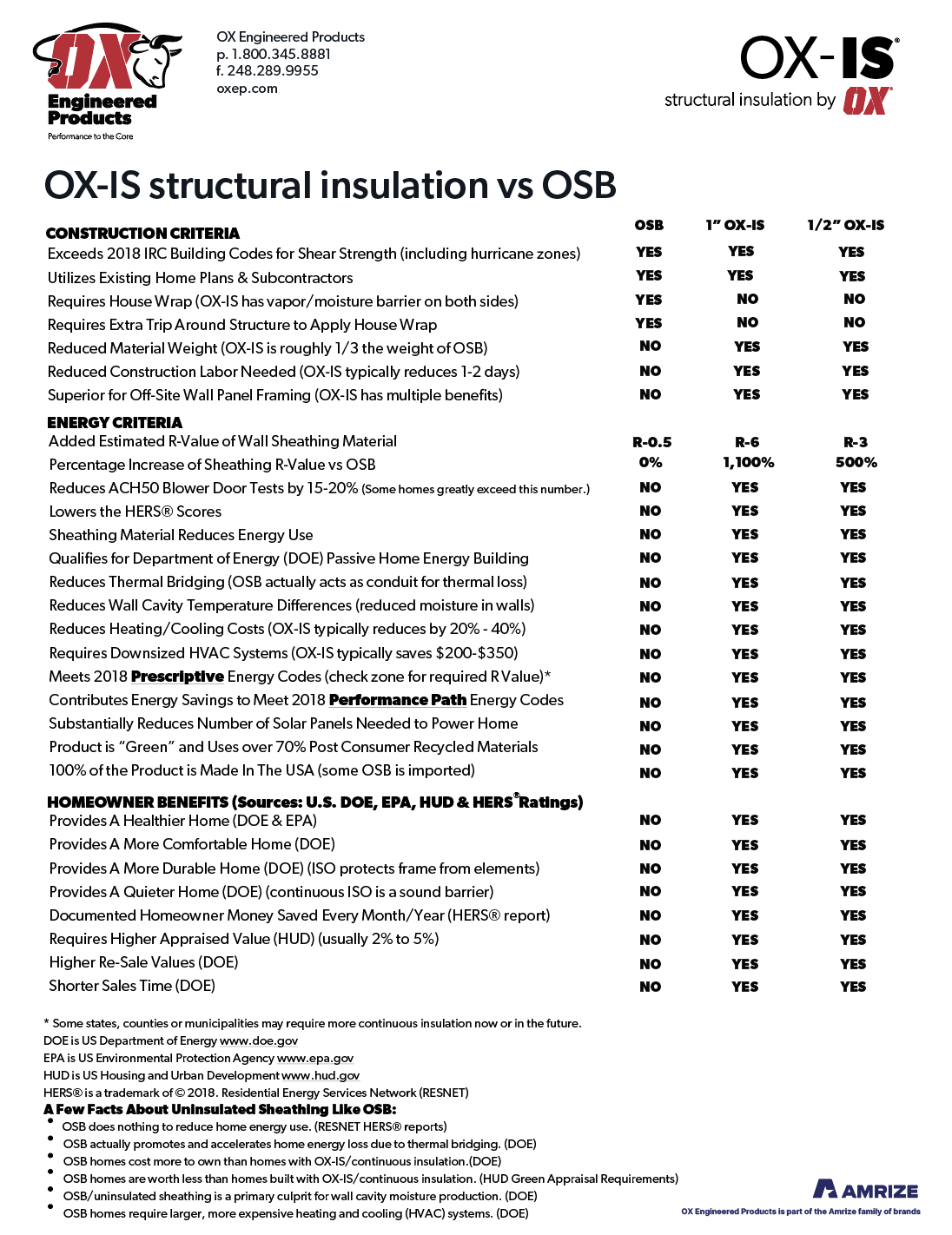

OX-IS vs OSB
OX-IS Technical Evaluation Report
OX-IS Technical Evaluation Report-Canada
OX-IS CSI Specification (.doc)
OX-IS CSI Specification (.pdf)
OX-IS Evaluation Report Portal Frames with Hold Down
OX-IS One and Two Hour Fire Rated Assemblies
OX-IS Standard 3 Coat Stucco Detail
OX-IS Safety Data Sheet
Stucco and Thin Stone over OX-IS
OX-IS Damage Repair Guidelines
OX-IS 1 Inch LEED Information
OX-IS 1/2 Inch LEED Information
OX-IS Window Trim Installation Details
OX-IS Rough Opening Penetration Best Practices
